JBL Synthesis

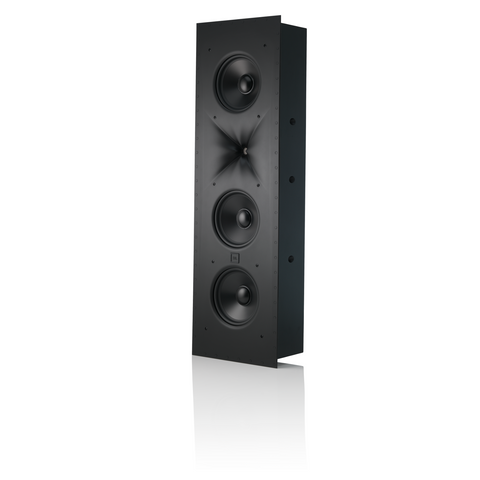

SCL-2 In-Wall Loudspeaker

$8,700.00
QTY:

2.5-Way Triple 8-inch (200mm) In-wall Loudspeaker


Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.

Speaker Type: 2-1/2-way Triple 8” In-wall Loudspeaker

• Low frequency transducer: Three 8” (200mm)cast-frame, Advanced Aluminum Matrix cone woofers
• Mid/High frequency transducer: D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
• Maximum recommended power: 450 watts RMS
• Frequency response (-6dB on-axis): 57Hz–25kHz
• Coverage area (-6dB@20kHz): 80 x 70 Degrees (Hor x Vert)
• Coverage area (-6dB@10kHz): 100 x 100 Degrees (Hor x Vert)
• Sensitivity (2.83V@1m): 92dB
• Nominal Impedance: 6 Ohm
• Crossover frequencies: 225Hz, 1.3kHz
• Enclosure type: Sealed in-wall mount with included back box
• Inputs: Dual gold-plated binding posts
• Finished grille dimensions (H x W): 40.2” x 12.8” (1020.8mm x 325.5mm)
• Cutout dimensions with backbox (H x W): 38.25” x 11.5” (971.6mm x 292.1mm)
• Mounting depth with backbox: 5.8” (147mm)
• Weight: 53.5 lb (24.3kg)
• Finishes: Matte Black with white paintable grille
