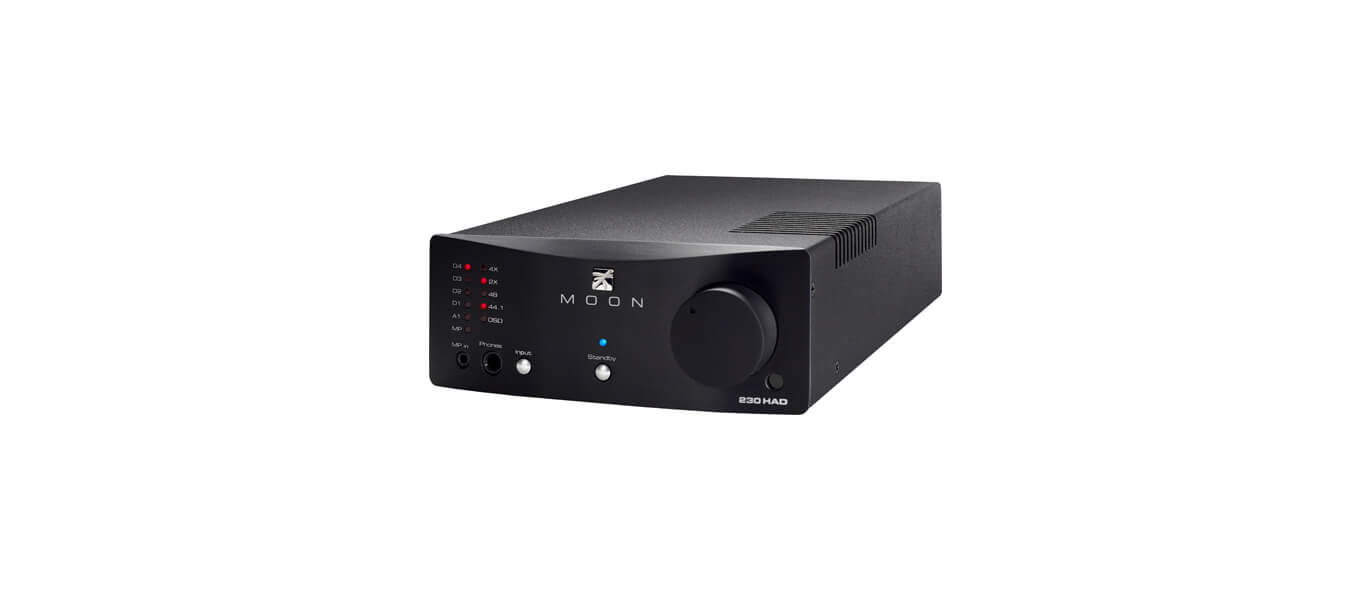

Simaudio

230HAD Headphone Amplifier with DAC

Available In-Store only
Design features:

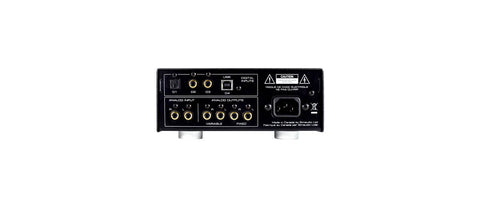

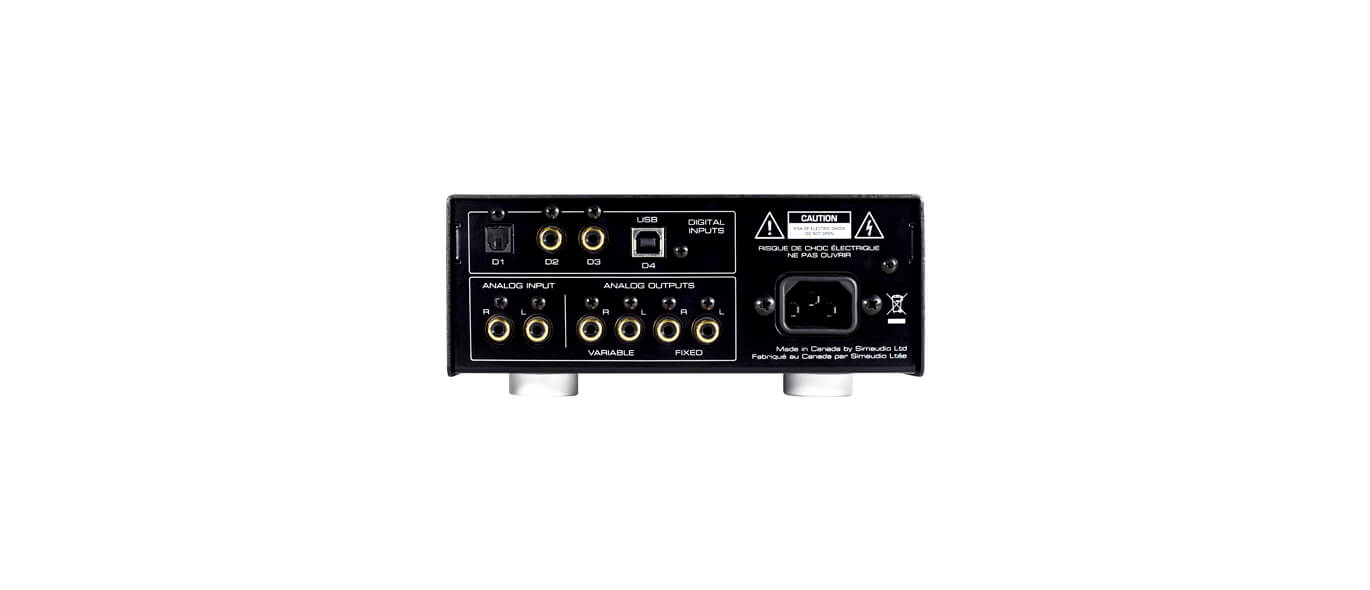

  • Inputs include 1 single-ended on rear-mounted RCA’s and 1 single-ended on 1/8” jack located on the front panel.
  • Outputs include a ¼” TRS headphone jack, as well as both fixed and variable single-ended line-level RCA stereo pairs.
  • Fully asynchronous DAC with four (4) digital inputs (S/PDIF x 2, TosLink x 1 & USB x 1) allowing for use with virtually any digital source; Supports DSD64, DSD128 and DSD256 (USB input only); Supports PCM up to 24-bit/192kHz (all inputs) and 32-bit/384kHz (USB input only).
  • Pure analog amplifier using a transconductance circuit.

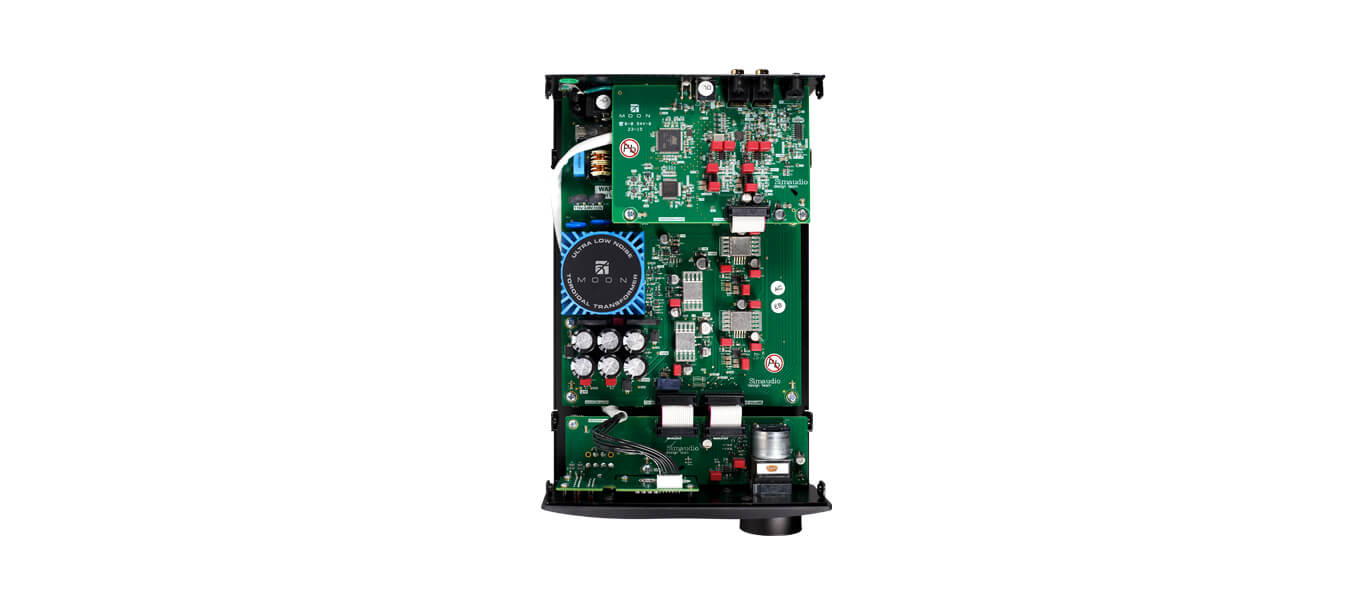

  • An oversized power supply using 1 toroidal transformer in conjunction with 8 stages of DC voltage regulation.
Specifications:
  • Output power per channel @ 600 / 300 / 50Ω
    100mW / 200mW / 1W
  • Headphone Impedance
    20 - 600Ω
  • Frequency Response (audible)
    20Hz - 20kHz ±0.1dB
  • Frequency Response (full range)
    5Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted)
    0.005%
  • Intermodulation distortion
    0.005%
  • Signal-to-noise Ratio
    115dB
  • Crosstalk
    80dB
  • Input / Output impedance
    22KΩ / 1.25Ω
  • Shipping weight
    6.2 lbs. / 2.8 Kgs
  • Dimensions (width x height x depth)
    7.0 x 3.0 x 11.0 in.

  • 17.8 x 7.6 x 28.0 cm
