Simaudio

340iX Stereo Integrated Amplifier

Available In-Store only
QTY:
Design features
  • 6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.
  • 1 (one) pair of balanced input (XLR).
  • Headphone output on 1/4” jack located on the front panel.

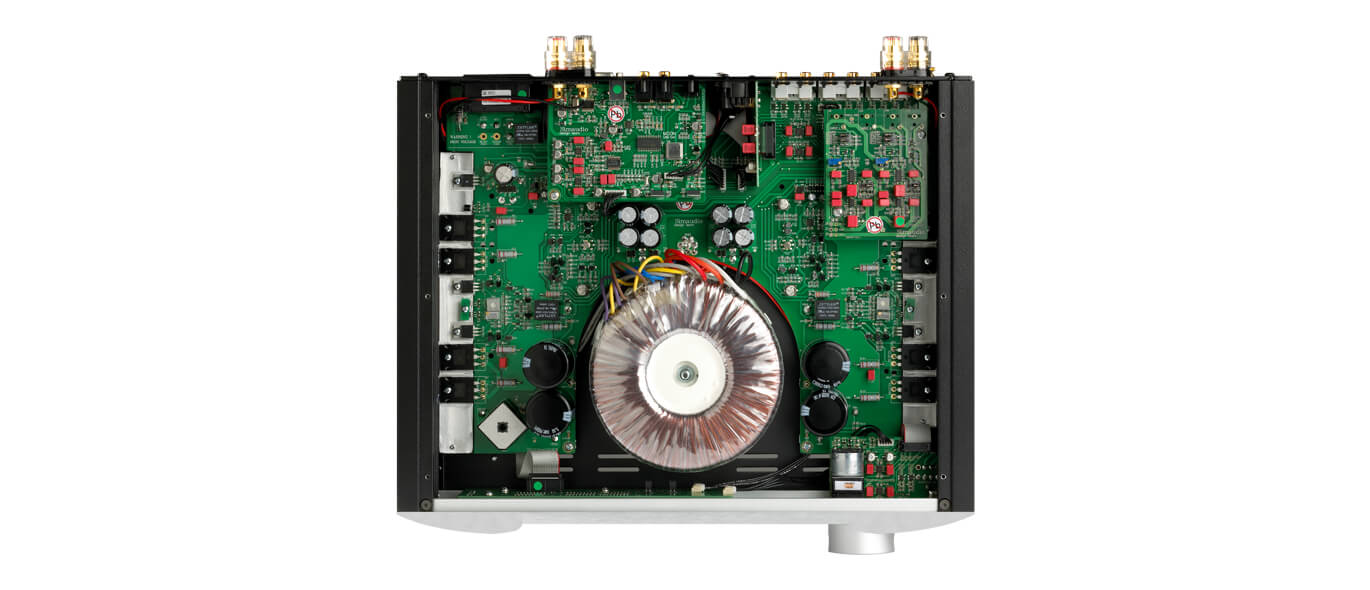

  • A massive oversized power supply using a custom toroidal transformer design.
  • “Class A” output to 5 watts for greater efficiency.
  • One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.
  • Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.
Specifications
  • Output Power at 8Ω
    100 Watts per channel
  • Output Power at 4Ω
    200 Watts per channel
  • Input Sensitivity
    400mV - 3.0V RMS
  • Input Impedance
    11,000Ω
  • Gain
    37dB
  • Signal-to-noise Ratio
    110dB @ full power
  • Frequency response (full range)
    2Hz - 90kHz +0/-3dB
  • Crosstalk
    88dB
  • THD (20Hz - 20kHz @ 1 watt)
    0.015%
  • THD (20Hz - 20kHz @ 100 watts)
    0.05%
  • Intermodulation distortion
    0.03%
  • Optional Digital Inputs
    S/PDIF, USB, Optical
  • Maximum PCM Resolution
    32-bit / 384kHz
  • DSD sample rates
    DSD64, DSD128 & DSD256
  • Shipping weight
    28 lbs / 13 Kgs
  • Dimensions (width x height x depth)
    16.9 x 3.5 x 14.8 in.
  • 42.9 x 8.9 x 37.6 cm
