Simaudio

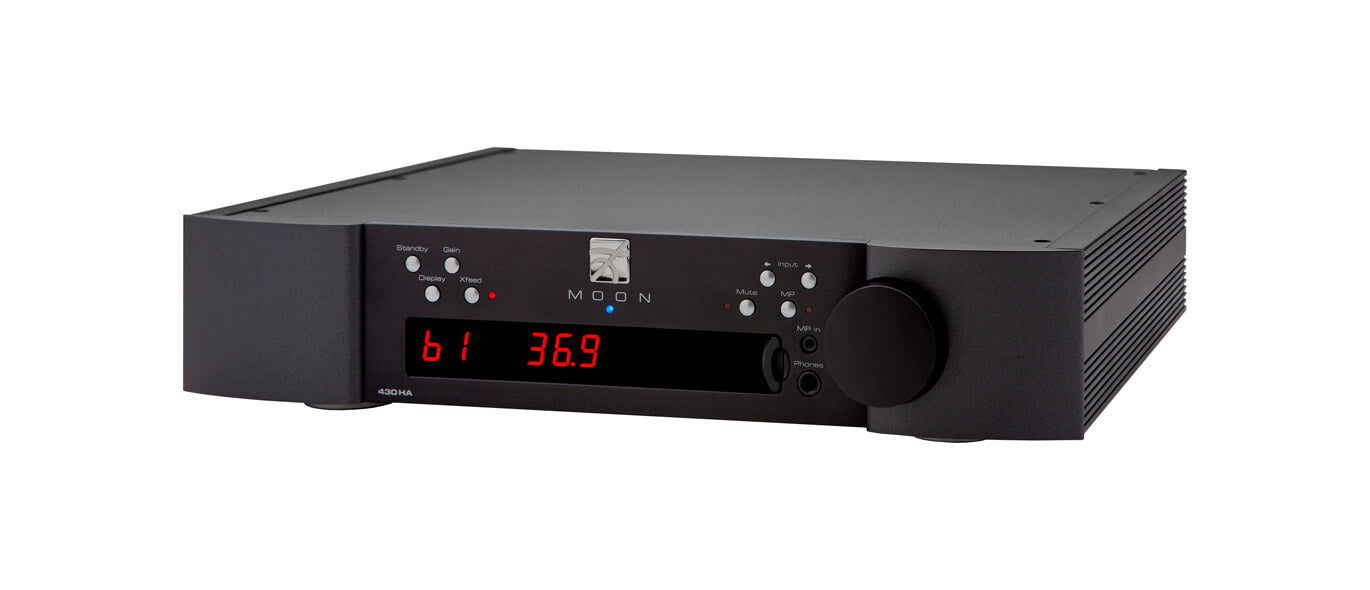

430HA Headphone Amplifier

Available In-Store only
QTY:
Design features

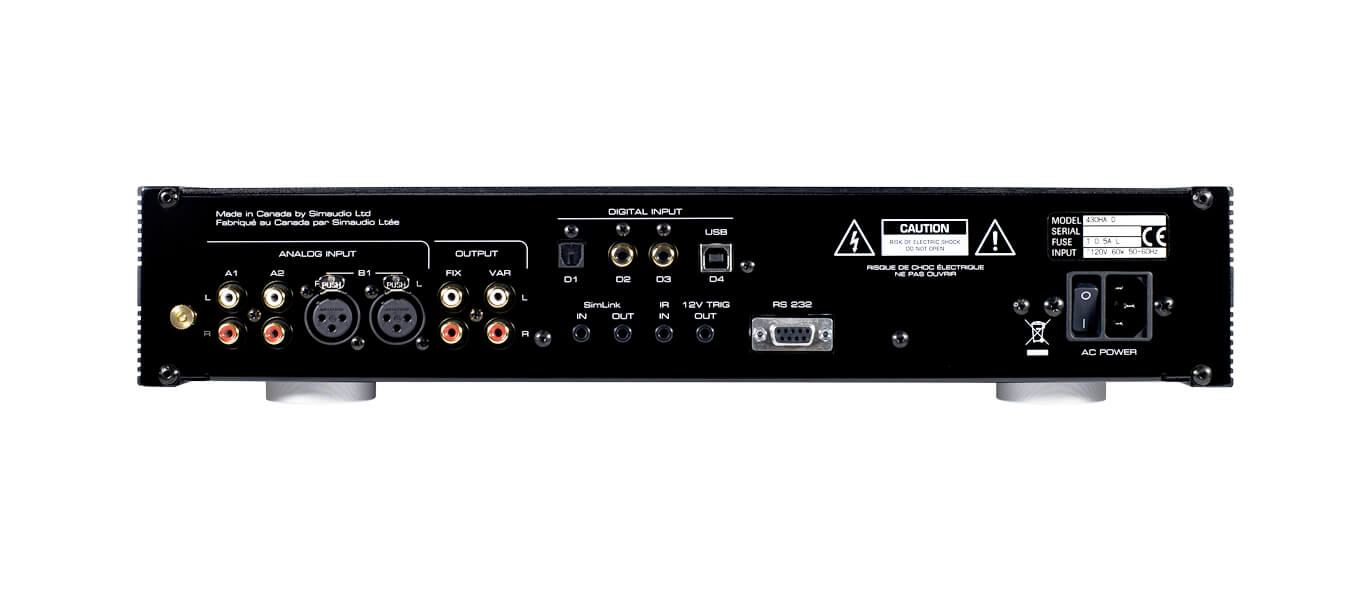

  • Inputs include 1 balanced on XLR’s, 2 single-ended on RCA’s and 1 single-ended on 1/8” jack located on the front panel.
  • Outputs include a pair of 3-pin XLR and one 4-Pin XLR located on the front panel behind a sliding window, a ¼” TRS jack, as well as both fixed and variable single-ended line-level RCA stereo pairs.
  • Four (4) stages of our own M-LoVo (MOON Low Voltage) DC regulation circuit to significantly lower the noise floor.
  • M-eVOL2 volume control with 530 steps and channel matching of 0.1dB.
  • Optional fully asynchronous DAC with four (4) digital inputs (S/PDIF x 2, TosLink x 1 & USB x 1) allowing for use with any virtual digital source; Supports DSD64, DSD128 and DSD256 (USB input only); Supports PCM up to 24-bit/192kHz (all inputs) and 32-bit/384kHz (USB input only).
Specifications
  • Output power per channel @ 600 / 300 / 50Ω
    667mW / 1.33W / 8W
  • Headphone Impedance
    20 - 600Ω
  • Frequency Response (audible)
    20Hz - 20kHz ±0.1dB
  • Frequency Response (full range)
    5Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted)
    0.005%
  • Intermodulation distortion
    0.005%
  • Signal-to-noise Ratio
    120dB
  • Crosstalk
    110dB
  • Input / Output impedance
    22KΩ / 1.25Ω
  • Shipping weight
    20 lbs. / 9 Kgs
  • Dimensions (width x height x depth)
    16.9 x 3.5 x 13.8 in
  • 42.9 x 8.9 x 35.1 cm
