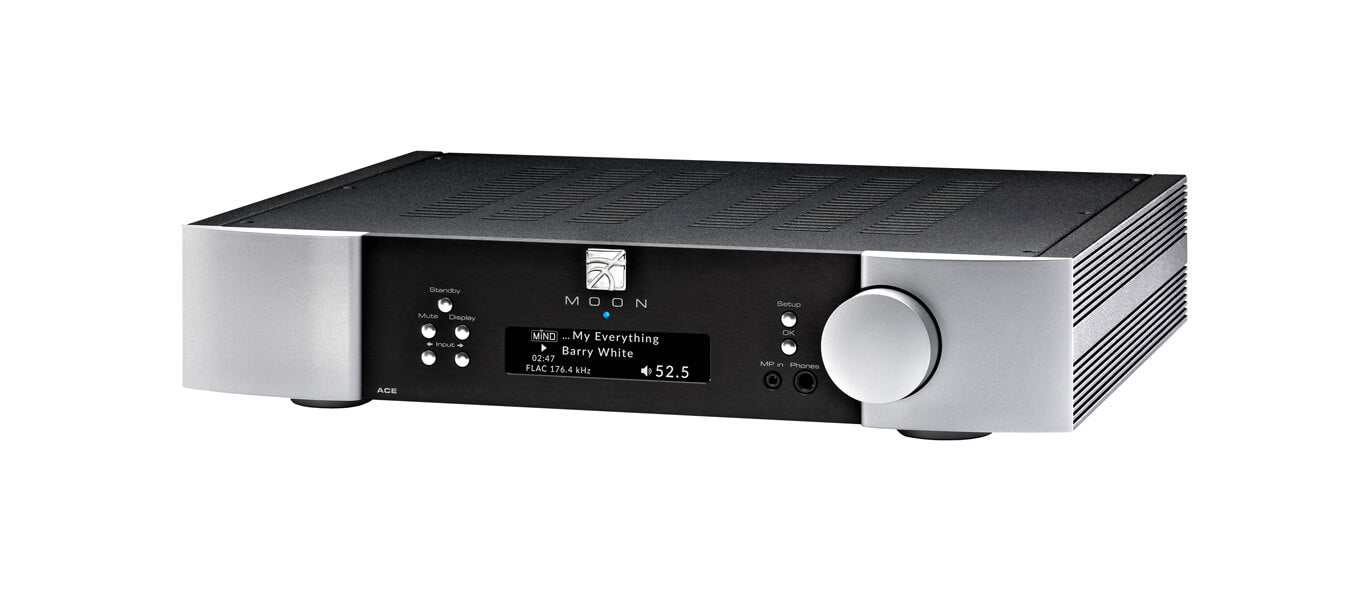

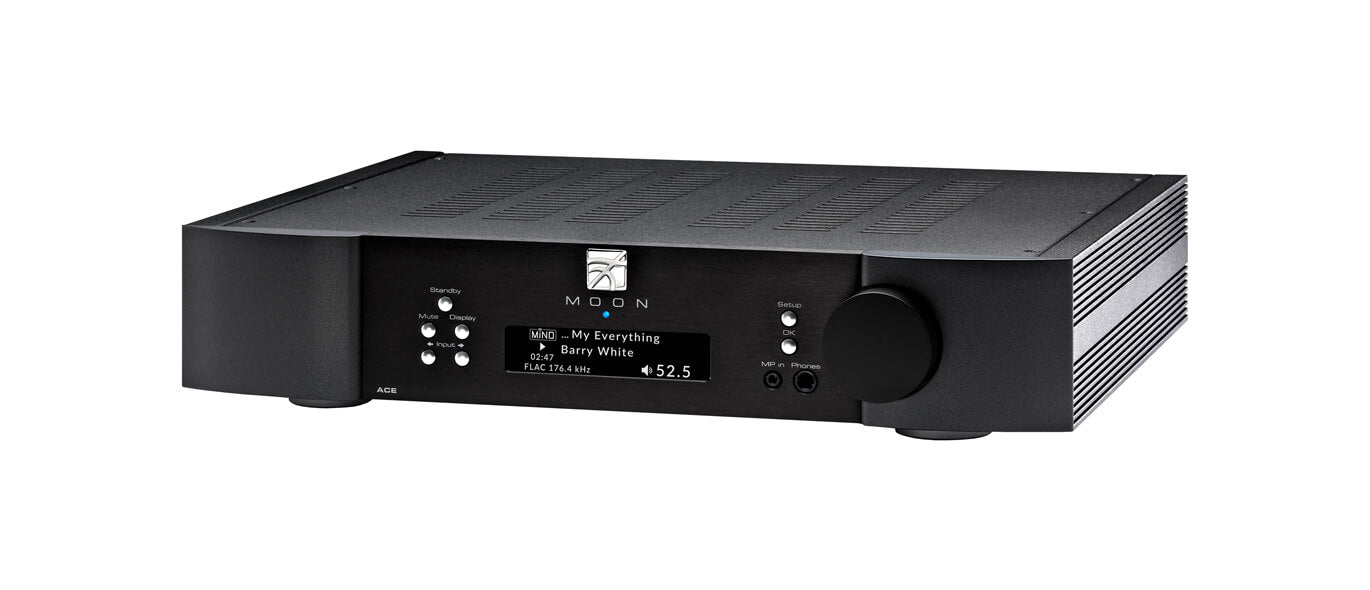

Simaudio

ACE All-in-one Music Player

Available In-Store only
QTY:
  • Design features

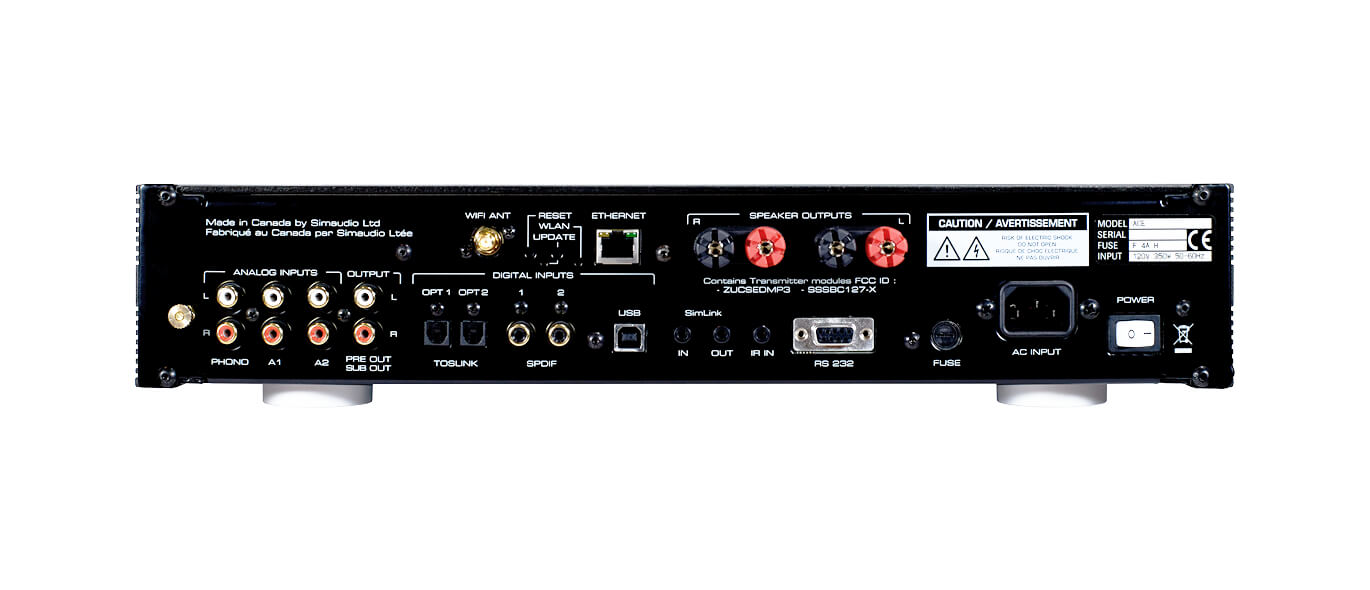

    • 3 line-level inputs including a front-mounted 1/8” mini-jack for personal media players.
    • Headphone output on 1/4” jack located on the front panel.
    • Seamless integration with our MiND app.
    • 8 digital inputs include USB (hi-res audio), SPDIF (2), Optical (2), Qualcomm® aptXTM audio for Bluetooth®, WiFi and Ethernet.
    • OLED type screen which provides more detailed information.
    • Simple MiND setup via on-board software menu.
    • Moving magnet phono preamplifier input.
    • Analog inputs are configurable to “pass-through” mode, which bypasses the gain stage to accommodate components like a home-theater processor, whose own volume control is used.
Specifications
  • Output Power at 8Ω
    50 Watts per channel
  • Input Sensitivity
    370mV - 3.0V RMS
  • Input Impedance
    22,100Ω
  • Gain
    37dB
  • Signal-to-noise Ratio
    100dB @ full power
  • Frequency response (full range)
    10Hz - 80kHz +0/-3dB
  • Crosstalk
    -100dB
  • THD (20Hz - 20kHz @ 1 watt / 50 watts)
    0.02% / 0.02%
  • Intermodulation distortion
    0.005%
  • PCM Bit-depth range / sampling rates
    16 - 32 bits / 44.1 - 384kHz
  • PCM Bit-depth range / sampling rates
    DSD64, DSD128 & DSD256
  • Shipping weight
    24 lbs / 11 Kgs
  • Dimensions (width x height x depth)
    16.9 x 3.5 x 14.4 in
  • 42.9 x 8.9 x 36.6 cm
