Yamaha

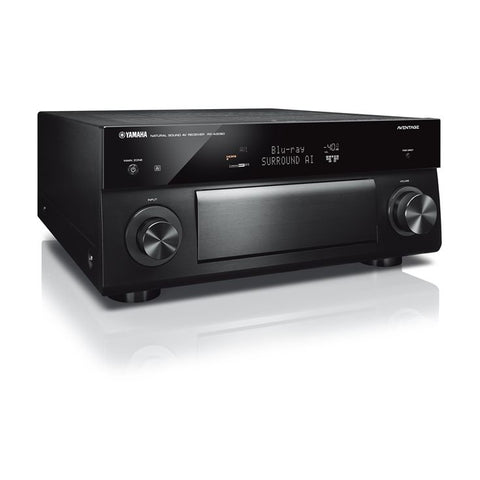

RXA-2080B AV Receiver

$2,199.95
QTY:

Surround:AI

The AI technology built into the DSP analyzes the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the greatest effect. This AI instantaneously analyzes scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time, just as if a Yamaha sound engineer tunes the best sound specifically for you. This creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible.

Dolby Atmos® and DTS-X™ Playback with CINEMA DSP HD3

This AV receiver supports Dolby Atmos and DTS-X playback with CINEMA DSP HD3, taking the surround sound experience to new heights. The revamped CINEMA DSP HD3 features new signal processing algorithms and three sets of high performance processors. This maximizes theater sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. You will experience a realistic cinema sound field with the sense of truly being immersed in the movie scene.

For Sound Purity

Highly Rigid Construction

The AVENTAGE model RX-A3080 features a sleek, clean design, with an elegant aluminum front panel. Even more importantly, the unit is exceptionally sturdy, with an interior reinforced with cross members in an H-shape. It also features the Anti Resonance Technology (A.R.T.) Wedge, which is a fifth foot in the center of the unit that dampens vibrations from the power transformer and elsewhere. Thanks to these, installation stability is improved and chassis resonance is dispersed, effectively eliminating external vibration, maintaining the highest audio quality.



Amplifier Section Channel 9.2
Rated Output Power (1kHz, 2ch driven) 165 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 150 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 230 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 175 / 220 / 295 / 410 W
Surround Sound Processing Surround:AI Yes
CINEMA DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Audio Features File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Audio Delay Yes (0-500 ms)
DA Converter ESS 384 kHz / 32-bit SABRE PRO Premier DAC™ ES9026PRO (for main 7 channels)
Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI eARC Yes (via firmware update)
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analog to HDMI® / HDMI to HDMI)
Video adjustment Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity MusicCast Surround Yes
XLR Terminal Yes
Extensive Connection HDMI Input/Output 7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes (AirPlay 2 via firmware update)
Bluetooth Yes (SBC / AAC)
Front AV Input USB / Analog Audio
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 10 (front 1) / 0
Phono Input Yes
Component Video Input/Output 2 / 0
Composite Video Input/Output 4 / 0
Preout 11.2-ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical User Interface
SCENE SCENE PLUS (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes (Full LED Backlight)
Zone Control Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output Preout
Zone 4 Audio Output HDMI
Powered Zone Zone 2 / 3
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (Advanced HDMI Zone Switching)
Zone B Output HDMI
Zone GUI Yes
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 1 / 1
Party Mode Yes
General Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 10-5/8” x 18-5/8”); 435 x 192 x 474 mm (with antenna up: 435 x 269 x 474 mm)
Weight 39.9 lbs.; 18.1 kg
